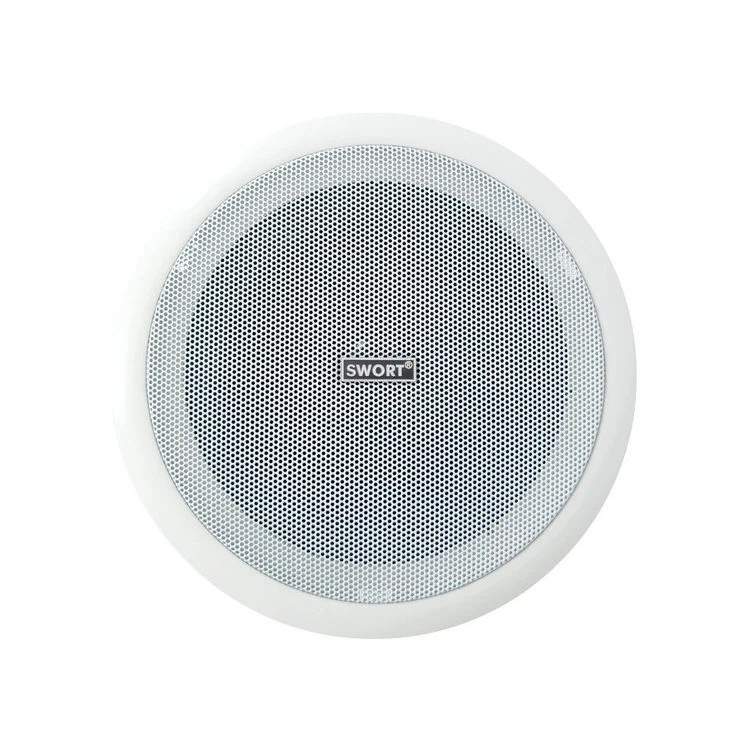

The C22 is a low-profile ceiling speaker that fits neatly into modern ceilings without affecting the overall interior design. It is suitable for voice announcements, emergency evacuation systems, and public address applications.

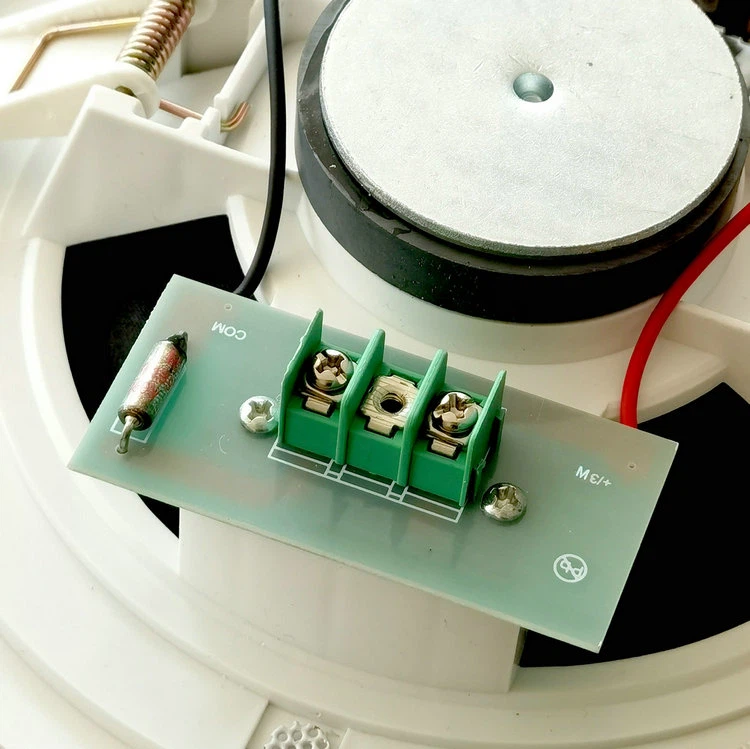

The speaker is designed for 100V line systems and is connected through a screw terminal block for a reliable installation. An optional thermal protection device is available. If the temperature reaches 150°C during a fire, the device automatically disconnects the speaker from the line to help protect the circuit.

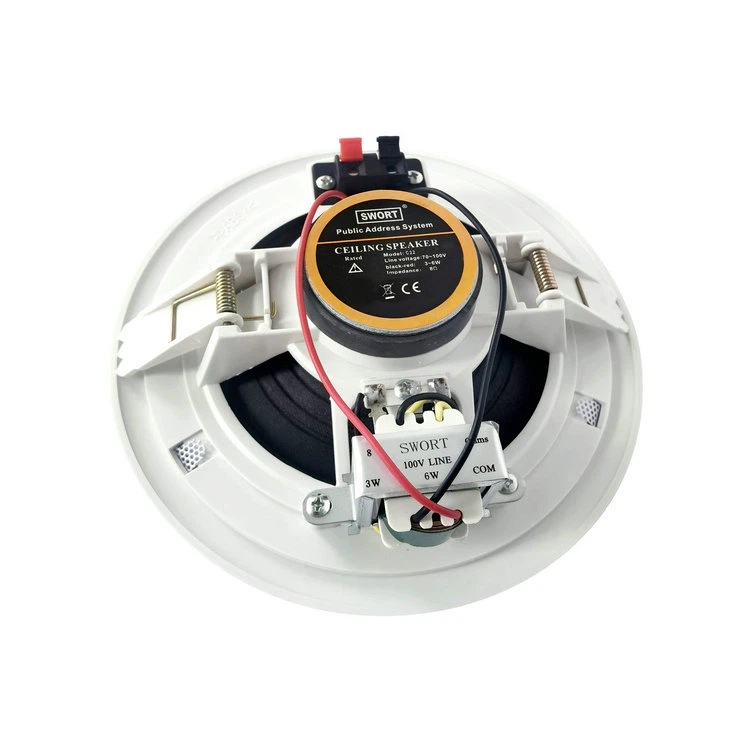

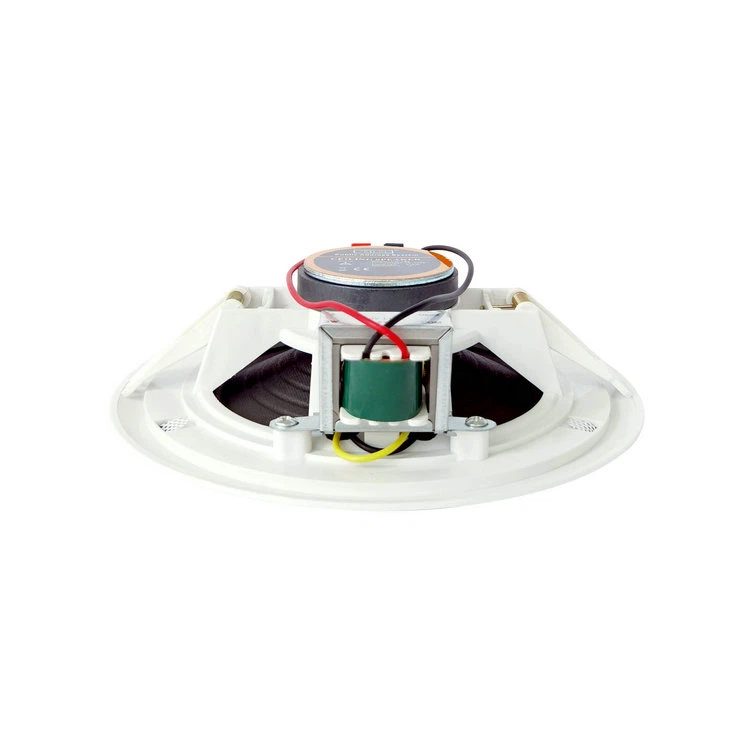

The C22 is a ceiling-mounted voice fire alarm speaker built for clear voice broadcasting and reliable operation. It combines a speaker unit, matching transformer, terminal block, and durable enclosure in one compact design, making installation simple while ensuring consistent performance in fire alarm systems.
Product Specifications
|
Model |
C22 |
|
Rated power |
3W/6W |
|
Input voltage |
100V |
|
Frequency range |
90-16KHz |
|
SPL(@1W/m) |
89dB |
|
Speaker and impedance |
5" 8ohms |
|

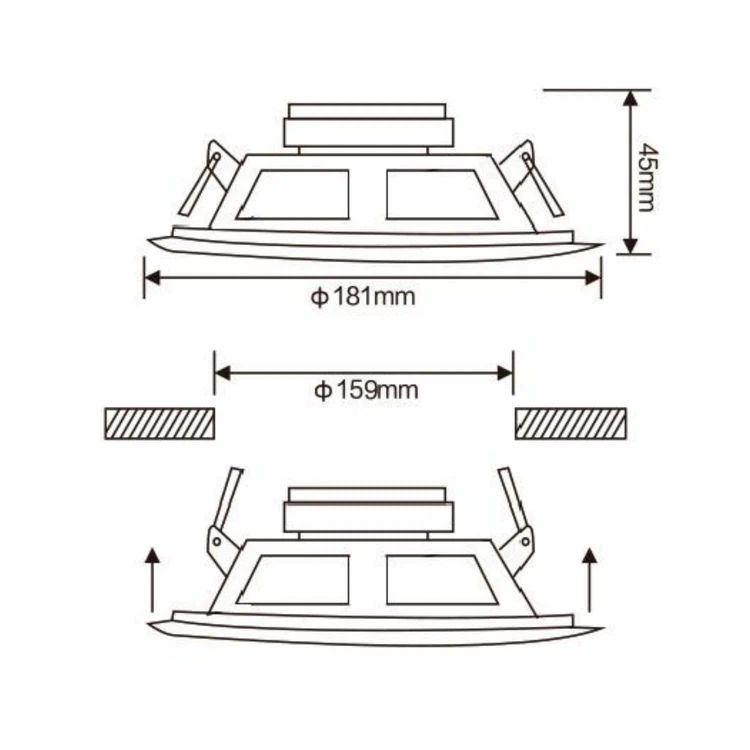

External dimension |
Φ181X45mm |
|
Installation hole |
Φ159mm |
Company Profile
Our Certificates
FAQ
Q: Do you support OEM/ODM branding?
A: Yes, as a professional audio manufacturer, we provide full OEM/ODM services. We can customize your brand logo on the product grill, outer packaging, and spec sheets and even adjust the frequency tuning or color based on your bulk requirements.
Q: What is your minimum order quantity (MOQ) for wholesale?
A: Our standard MOQ for bulk orders is usually 100-200 pcs per model. However, for new customers, we support a lower MOQ for your initial trial order to test the market and quality. Samples can be provided upon request.
Q: Which international certifications do your speakers have?
A: Our products are strictly manufactured according to international standards and currently hold CE, RoHS, and Reach certifications. If your specific market or project requires other certificates (such as UL, EN54-24 for fire safety), please inform us, and we can cooperate with the testing process.
Q: What is your typical lead time for production and delivery?
A: For sample orders or stock items, we can ship within 3-7 days. For standard mass production bulk orders, the lead time is approximately 20-30 days depending on the order volume and customization requirements. We ensure strict adherence to agreed project deadlines.
