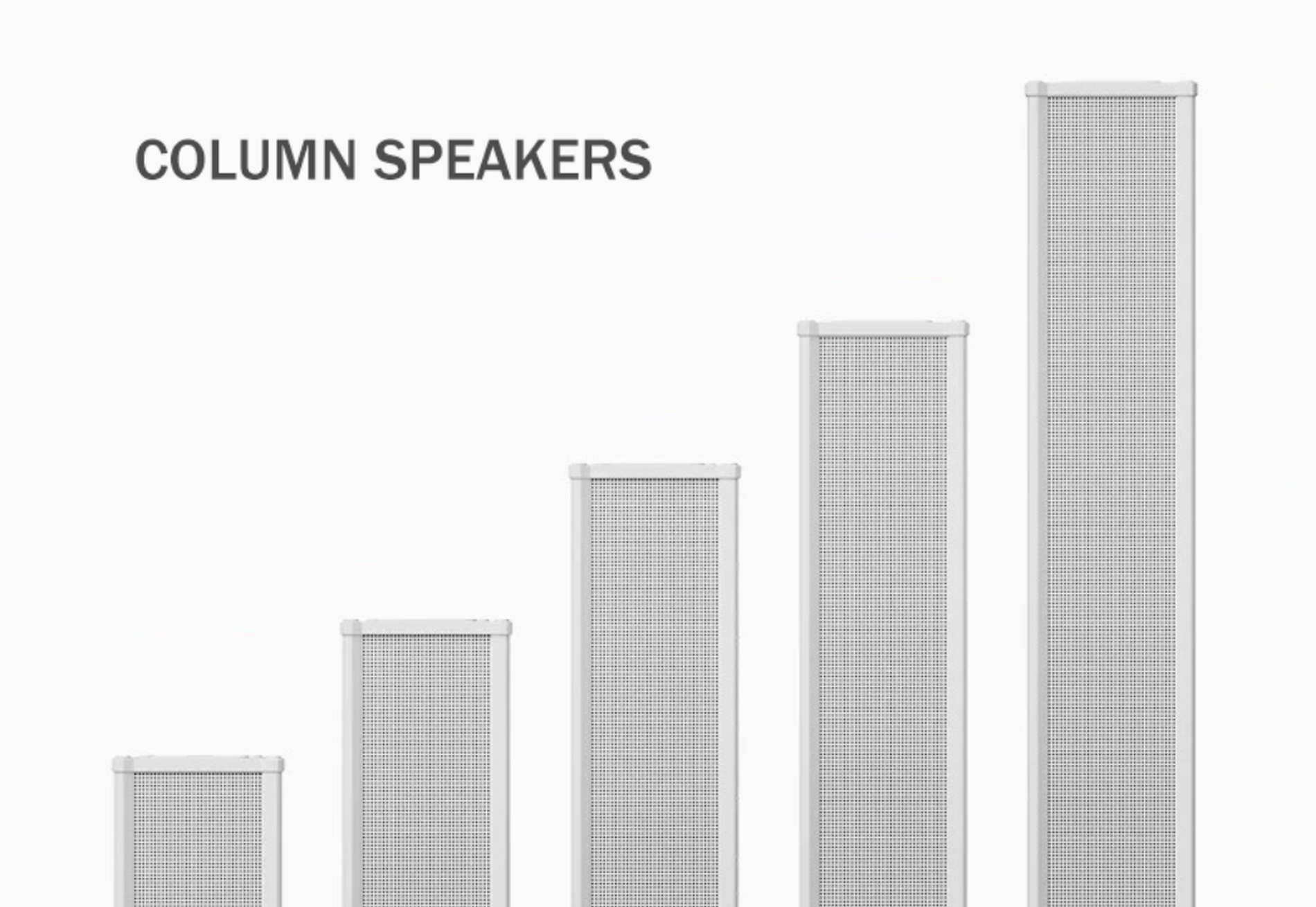

Column Speakers

Columns actually have a wider horizontal spread than conventional PA speakers. They have a narrower vertical pattern, which doesn't give you any advantage unless the columns are on stands tall enough to ``shoot'' over your head. And that won't work in rooms with less than 12 feet of ceiling height.

Column PA speakers, with their slender, vertical design, offer a unique solution to the challenge of sound dispersion. These speakers are capable of projecting sound over a wide area while maintaining a consistent volume level, even at a distance.

A column speaker is a compact speaker with multiple drivers arranged vertically for better sound dispersion. A line array speaker is a more advanced system designed for large-scale audio reinforcement, such as concerts and stadiums, offering controlled vertical dispersion for long-distance sound projection.

• Passive column speakers require an external amplifier.
• Active column speakers have a built-in amplifier and can connect directly to audio sources.

Yes, weatherproof column speakers are designed with waterproof and dustproof enclosures, making them suitable for outdoor installations.

A 100V/70V column speaker is designed for public address systems, allowing multiple speakers to be connected on the same circuit without signal loss. It is commonly used in large buildings, malls, and transport hubs.

Yes! Swallow Electronics Factory offers OEM & ODM services, including:

• Custom branding (logo, packaging, and labels)
• Different materials and colors
• Customized power ratings and transformer options

Column speakers can be:

• Wall-mounted using brackets.
• Pole-mounted for outdoor use.
• Freestanding on stands for portable setups.

The benefits of a column array are many. Due to the nature of the speaker arrangement, they have a wider sound dispersion to cover a larger horizontal area. They also reduce the sound transmitted to the floor and ceiling for increased efficiency.

Too Many Speakers in an Audio Setup ≠ Better Sound Quality. One common misconception is that more speakers always equate to better sound quality. While it's true that a well-designed multi-speaker setup can provide enhanced spatiality and immersion, the number of speakers alone does not guarantee optimal sound quality.

The power rating depends on the model, usually ranging from 10W to 200W. Check the specifications to ensure compatibility with your amplifier.

Column speakers are typically high-impedance (70V/100V line) or low-impedance (8Ω/16Ω).
For 100V line systems, connect the speaker using the matching transformer taps.
For low-impedance setups, connect directly to the amplifier output terminals.

Column speakers usually have a narrow vertical dispersion (20°–40°) and a wide horizontal dispersion (80°–120°). This helps to reduce sound reflections from ceilings and floors while providing even coverage.

Some column speakers are IP-rated for outdoor use. For example, models with IP55 or IP65 ratings can withstand dust and rain. Always check the product specifications before installing outdoors.

The number depends on the area size, ambient noise, and required sound levels. Generally:
Small rooms (50-100 sqm): 1-2 speakers
Medium-sized halls (100-300 sqm): 2-4 speakers
Large venues (300+ sqm): Multiple speakers strategically placed

Regular cleaning: Wipe off dust and dirt with a dry or slightly damp cloth.
Check connections: Ensure wiring and terminals are secure.
Weather protection: If installed outdoors, inspect for water damage or rust.

Yes, column speakers are commonly used for both background music and public announcements due to their clear speech intelligibility and wide sound coverage.
