Products Description

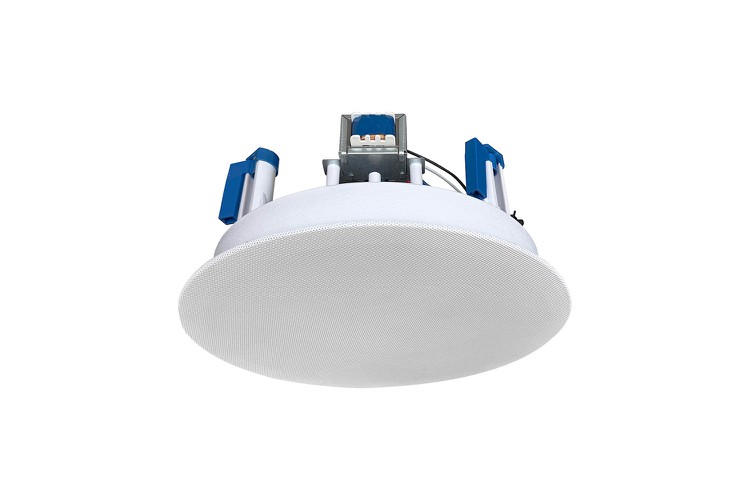

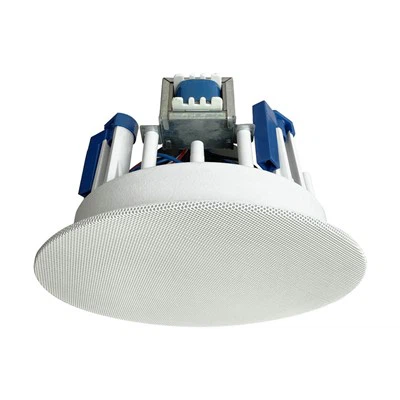

CEILING SPEAKER C1
The C1 ceiling speaker is a two-way coaxial ceiling speaker. It features an 8-inch woofer and a 1-inch tweeter. Constructed from high-grade ABS plastic, the housing includes a magnetic metal-sprayed grille for secure protection and hassle-free access to internal components.The speaker features snap-on design around the perimeter for quick and easy installation, and the height of the clips can be adjusted to suit your needs.
This C1 ceiling speaker is ideal for commercial audio applications, including public address systems, background music, and other commercial uses. It is particularly suitable for offices, conference rooms, retail stores, and schools.
PA ceiling speaker, with integrated tweeter
• 70V / 100V transmission technology
• 2-way version with coaxial dome tweeter
• Stylish flush fit protective metal grille with slim ABS frame
• Protective grille magnetically attached to speaker front
• For a ceiling thickness from 8 to 45 mm
Products Specification
|
Model |
C1 |
|
Rated Power |
10W / 20W / 30W |
|
Input Voltage |
70V / 100V |
| Frequency Response | 70Hz – 20kHz |
| Sensitivity (SPL @1W/1m) | 92 ± 3dB |
| Woofer Speaker Driver |
200mm (8") |
| Tweeter Speaker Driver | 25mm (1") |
| Cut-out Size | Ø240 mm |
| Dimensions | Ø273 × 126 mm |
| Frame Material | ABS |
| Grille Material | Powder coated Iron mesh |
| Color | White |
|
Net Weight |
1.8 kg |
| Gross weight | 18.5 kg / 8pcs |
| Packing dimension | 61 × 31.5 × 56 cm |
