Products Description

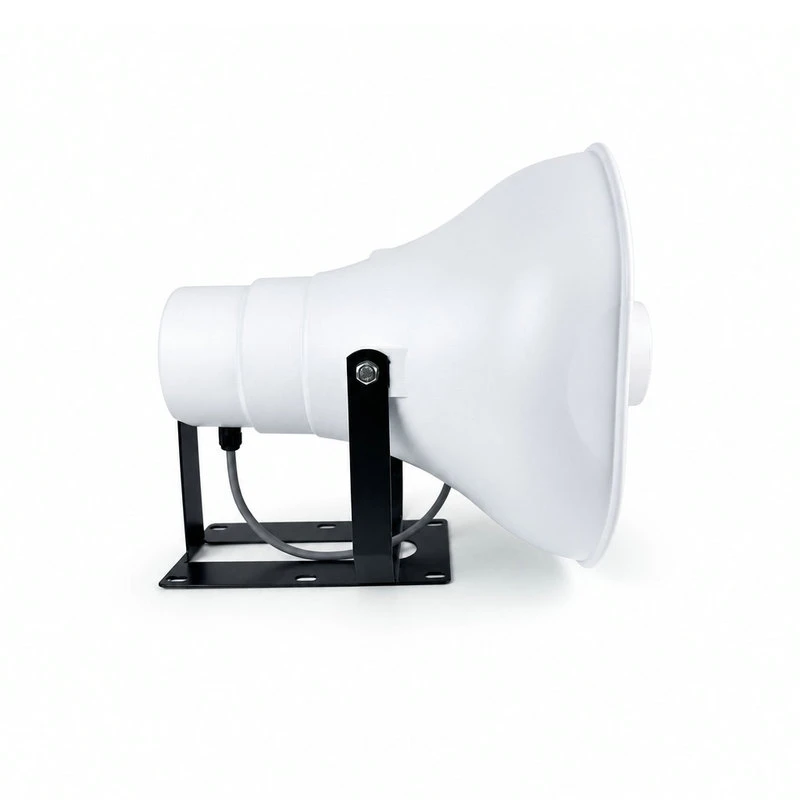

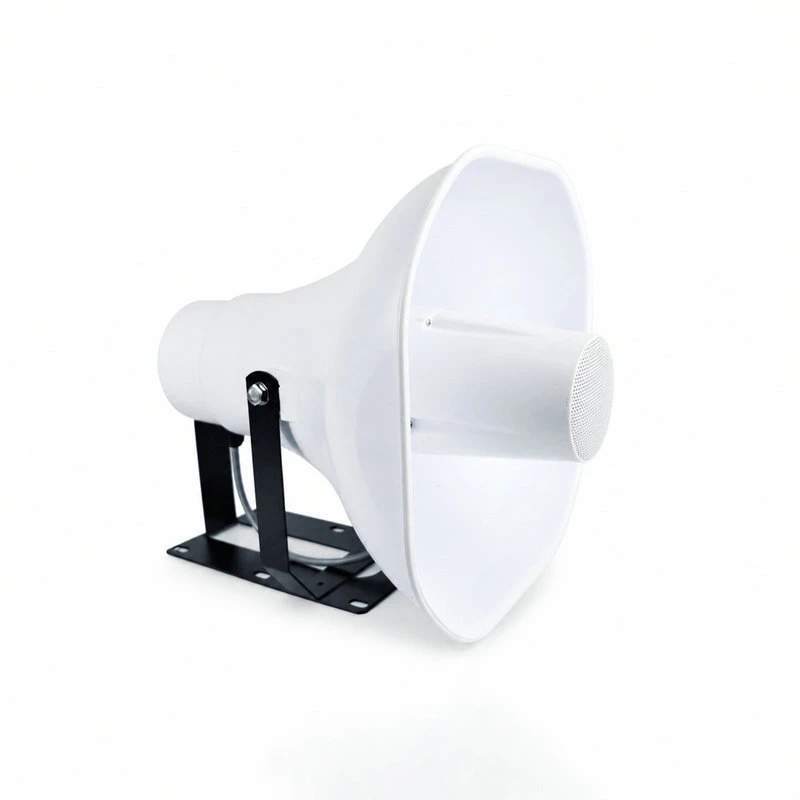

100W Long Range Horn Speaker | 100V/8Ω PA Horn Speaker
The H9 is a 100W long range horn speaker designed for outdoor public address systems, paging and wide-area sound coverage. It features a 5" woofer and tweeter for clear voice reproduction and supports both 100V constant-voltage and 8Ω low-impedance audio systems.
With an ABS housing, metal mounting bracket and IP56 protection, the H9 is suitable for outdoor installations where reliable sound projection and weather protection are required. The switchable 100V/8Ω input also provides flexibility for different PA amplifier configurations.
The H9 can be used for announcements and public address applications in schools, industrial facilities, transportation areas, commercial sites and other outdoor or large-area environments.
H9 | horn speaker for outdoor PA and voice evacuation applications
• 100W Rated Power
High output for wide-area sound coverage.
• 100V / 8Ω Switchable
Compatible with constant-voltage and low-impedance PA systems.
• IP56 Protection
Designed for outdoor installation and protection against dust and water.
• Up to 100 m Coverage
Suitable for long-distance voice and announcement applications.
Manufacturer information:
SWALLOW ELECTRONICS FACTORY
No.1861 Zhonghuan West Road,
Jiaxing 314000,Zhejiang
China
info@loudspeakerchina.com
We welcome OEM and ODM orders, offering custom design services for new models, logos, and packaging.
Products Specification
| Model | H9 |
| Rated Power |
100W |
| Input Voltage | 100V / 8Ω (switchable) |
| Frequency Response | 150Hz – 20kHz |
| Sensitivity (SPL @1W/1m) | 85 ± 3dB |
| Speaker Driver | 5" Woofer + Tweeter |
| Range | 100 m |
| Dimensions | 3295 × 295 × 365 mm |
| Speech Intelligibility (STIPA) | 0.8 |
| Wind Resistance | ≥ Level 12 |
| Enclosure Material | ABS |
| Mounting bracket | Metal |
| Color | White |
| Net Weight | 2 kg |
Applications
-
Outdoor Public Address
For announcements and paging in outdoor public areas.
-
Emergency Voice Communication
Suitable for voice alarm and emergency announcement systems where clear speech projection is required.
-
Industrial Facilities
For factories, warehouses, production areas and large industrial sites.
-
Schools and Campuses
Suitable for school announcements, campus paging and outdoor communication.
-
Transportation Areas
For stations, terminals, parking areas and other transportation facilities.
-
Commercial and Public Areas
Suitable for shopping areas, parks, sports facilities and other large public spaces.
