Products Description

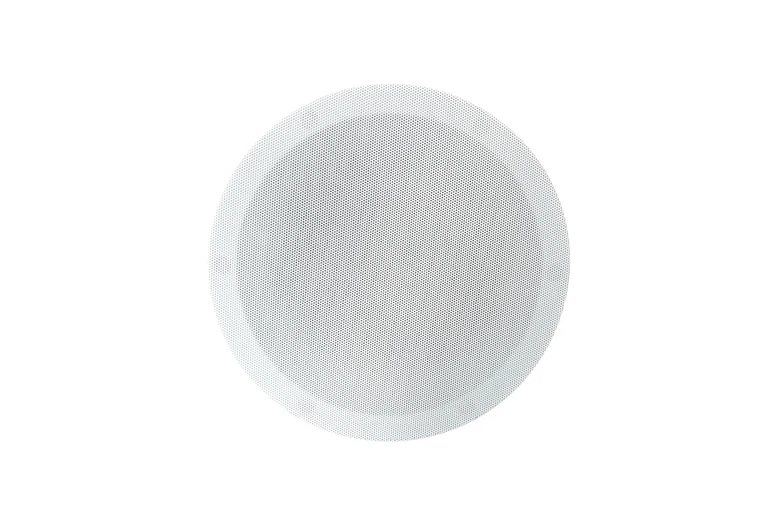

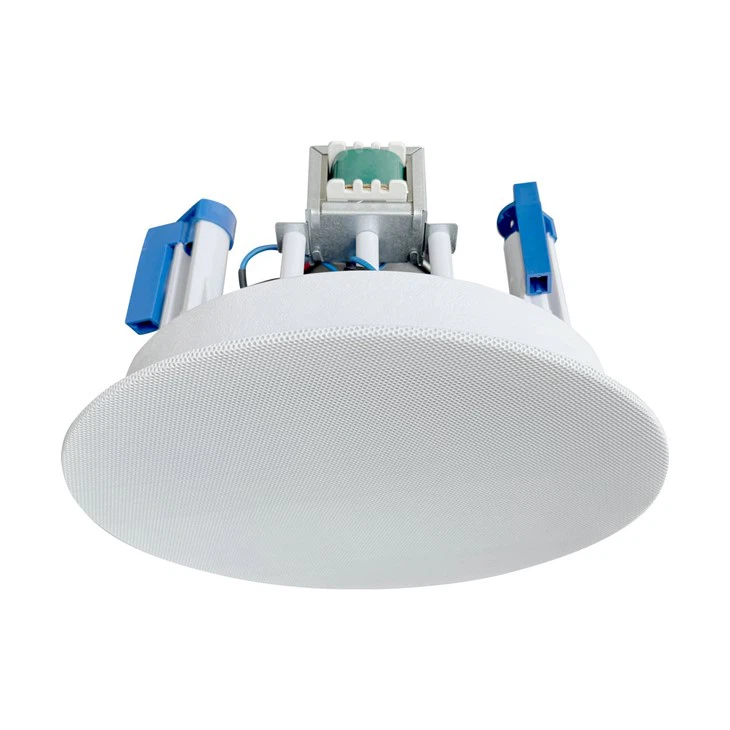

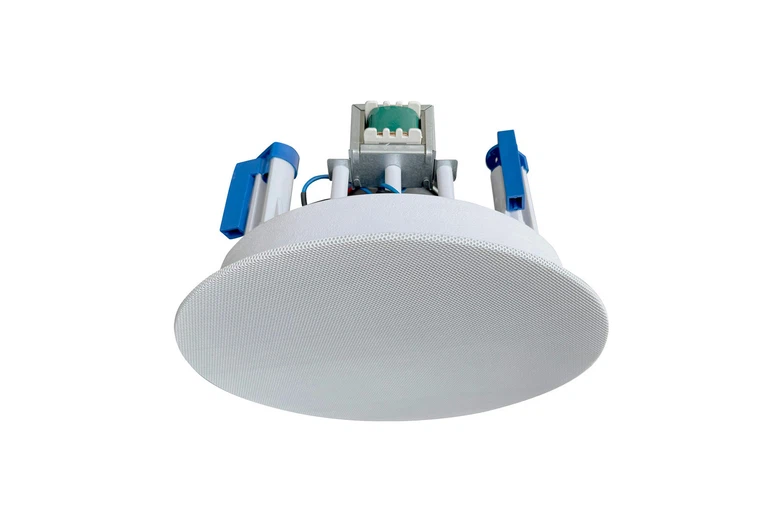

165mm (6.5in.) TWO-WAY COAXIAL IN-CEILING SPEAKER
The C2 two way coaxial in-ceiling speaker gives clear, balanced sound and fits into any ceiling. This speaker is a good choice for commercial and home use. It works well in offices, stores, hotels, and other places.
Features:
High-Quality Sound: The two way coaxial in-ceiling speaker features a 6.5-inch 2-way driver that delivers focused sound and a wide frequency response range.
Flexible Power Options: This speaker offers three power settings: 10W, 15W, and 20W. These options make it suitable for various audio needs.
Durable Design: The speaker is built with a metal mesh grille and a frameless design. Its premium ABS plastic shell is sturdy and durable.
Easy to Install: Installation is quick and easy. The system uses screws, saving time and effort during setup.
100V Input Voltage: Perfect for use in commercial PA systems.
Idel for：
The frameless C2 coaxial ceiling speaker seamlessly integrates into commercial spaces like malls, hotels, and offices.
PA coaxial ceiling speaker, with integrated tweeter
• 70V / 100V transmission technology
• 2-way version with coaxial dome tweeter
• 165mm(6.5") woofer,25mm(1") silk dome
• Stylish flush fit protective metal grille with slim ABS frame
• Protective grille magnetically attached to speaker front
• For a ceiling thickness from 10 to 42 mm
Manufacturer information:
SWALLOW ELECTRONICS FACTORY
No.1861 Zhonghuan West Road,
Jiaxing 314000,Zhejiang
China
info@loudspeakerchina.com
Since our establishment in 2006, Swallow Electronics has consistently delivered high-quality audio solutions to clients worldwide.We maintain fair and transparent return and replacement policies for our partners.
Products Specification
| Model | C2 |
| Rated Power | 10W / 15W / 20W |
| Input Voltage | 70V / 100V |
| Frequency Response | 70Hz – 20kHz |
| Sensitivity (SPL @1W/1m) | 90 ± 3dB |
| Woofer Speaker Driver | 165mm (6.5") |
| Tweeter Speaker Driver | 25mm (1") |
| Cut-out Size | Ø190 mm |
| Dimensions | Ø230 × 106 mm |
| Frame Material | ABS |
| Grille Material | Powder coated Iron mesh |
| Color | White |
| Net Weight | 1.29 kg |
| Gross weight | 20 kg / 12pcs |
| Packing dimension | 56 × 55 × 36 cm |
FAQ
Q: Do you support OEM/ODM branding?
A: Yes, as a professional audio manufacturer, we provide full OEM/ODM services. We can customize your brand logo on the product grill, outer packaging, and spec sheets and even adjust the frequency tuning or color based on your bulk requirements.
Q: What is your minimum order quantity (MOQ) for wholesale?
A: Our standard MOQ for bulk orders is usually 100-200 pcs per model. However, for new customers, we support a lower MOQ for your initial trial order to test the market and quality. Samples can be provided upon request.
Q: Which international certifications do your speakers have?
A: Our products are strictly manufactured according to international standards and currently hold CE, RoHS, and Reach certifications. If your specific market or project requires other certificates (such as UL, EN54-24 for fire safety), please inform us, and we can cooperate with the testing process.
Q: What is your typical lead time for production and delivery?
A: For sample orders or stock items, we can ship within 3-7 days. For standard mass production bulk orders, the lead time is approximately 20-30 days depending on the order volume and customization requirements. We ensure strict adherence to agreed project deadlines.
